#61
Old 03-09-2022, 05:09 PM
Scott65's Avatar
Scott65 Scott65 is offline
Ultimate Warrior

Join Date: Jan 2002
Location: Houston, Texas
Posts: 1,991
Default

Mine are 3/4" NPT.

__________________
'65 Tempest 467 3650# 11.30@120.31
  #62
Old 03-09-2022, 05:12 PM
cgeise's Avatar
cgeise cgeise is offline
Ultimate Warrior

Join Date: Jan 2005
Location: Ellensburg,WA
Posts: 2,934
Default

lets confuse things here-- I ran a reverse cooling -- remote pump with lines to the back of each head then out the front at the original water pump inlet holes and the thermostat housing. BOP made some nice fittings to bolt up there to have AN hose thread right on.

  #63
Old 03-09-2022, 07:04 PM
Steve C. Steve C. is offline
Ultimate Warrior

Join Date: Dec 1999
Location: Liberty Hill, Tx. (Austin)
Posts: 10,213
Default

The IA2 block we run in Fairmont is reverse cooled. Race only and it was done to cool the heads first since it's a 1000+ hp nitrous application. The block is run dry deck with no water cooling passages into the heads. It uses a remote mounted Meziere 55gpm electric water pump. The water travels out the front of the engine, thru a fixture that eliminates the block mounted water pump, into the front of the heads, out the back of the heads into the block, which has water passage provisions for it in the rear of the block, then thru the block back to the front. The system uses a radiator. The remote elec water pump is located on the lower outlet of the radiator.

.

__________________
'70 TA / 505 cid / same engine but revised ( previous best 10.63 at 127.05 )
Old information here:
http://www.hotrod.com/articles/0712p...tiac-trans-am/

Sponsor of the world's fastest Pontiac powered Ford Fairmont (engine)
5.14 at 140 mph (1/8 mile) , true 10.5 tire, stock type suspension
https://www.youtube.com/watch?v=qDoJnIP3HgE
The Following User Says Thank You to Steve C. For This Useful Post:
  #64
Old 03-09-2022, 10:50 PM
chuckies76ta's Avatar
chuckies76ta chuckies76ta is offline
Ultimate Warrior

Join Date: Jun 2004
Location: Canada
Posts: 2,917
Default

Quote:
Originally Posted by Don 79 TA View Post
when routing the water from the back of the cylinder heads to the water neck spacer, does that give a good reduction in temps? what have others seen?
Would i see a benefit doing that over routing the two back passages on the head to the heater nipple on the timing cover?
I have the rear passages blocked off now and the heater nipple is also blocked off
If something sort of simple like either option aids in additional cooling i'd like to try it. I have a road where i have to run 3rd gear at 30-35 and thats when my temps climb, especially past 95 degree outdoor temps

also what size adaptor would i need for the rear round port e-heads to say a #8 line would i need? I have plenty of #8 and #10 hose around, i'd just need a few fittings. figured since i planned on flushing the cooling system, this would the perfect time to make this type of change.

i run the electric water pump and 160 stat now with a good 1.25" dual core aluminum radiator and the summer night temps can still be well over 100 degrees outside.

I removed the adapter and put everything back to the way I had it setup last summer. I don't like the idea of not running a thermostat. I routed the back of both heads to the front water crossover, and also went to the timing cover heater return. I also left in place the bypass. And drilled 2- 1/8" holes in the thermostat to remove any air. I used -10 for all my fittings and just used heater hose line for now.

__________________
Best 2021: 10.28 at 130mph.1.46 60ft.
Best 2022.:10.14 @ 133 mph 1.46 60 ft.
10.11@133 mph. 1.47 60 ft.
  #65
Old 08-04-2022, 01:19 AM
R 70 Judge's Avatar
R 70 Judge R 70 Judge is offline
Ultimate Warrior

Join Date: Mar 2002
Location: San Diego, CA
Posts: 2,644
Default

Quote:
Originally Posted by Steve C. View Post
The IA2 block we run in Fairmont is reverse cooled. Race only and it was done to cool the heads first since it's a 1000+ hp nitrous application. The block is run dry deck with no water cooling passages into the heads. It uses a remote mounted Meziere 55gpm electric water pump. The water travels out the front of the engine, thru a fixture that eliminates the block mounted water pump, into the front of the heads, out the back of the heads into the block, which has water passage provisions for it in the rear of the block, then thru the block back to the front. The system uses a radiator. The remote elec water pump is located on the lower outlet of the radiator.

.
Iíd love to see some pictures of the routing, Steve. I plan on reverse cooling once I go twin turbo. If you have any, you can email them. You probably still have my email address.

__________________
James
1970 Trans Am

Spotts Built 484" IA2, Highports, EFI Northwind
Terminator X sequential EFI fabrication and suspension by
https://www.funkhouserracecars.com/
The Following User Says Thank You to R 70 Judge For This Useful Post:
  #66
Old 08-04-2022, 02:22 AM
R 70 Judge's Avatar
R 70 Judge R 70 Judge is offline
Ultimate Warrior

Join Date: Mar 2002
Location: San Diego, CA
Posts: 2,644
Default

After quite a few months of waiting and waiting Iíve decided to design and build my own CNC aluminum water manifold adapter/thermostat housing for a Pontiac. The final touches are being put on the design file now.
  • They will have rounded edges
  • Iím going to integrate an O-ring for sealing on one side to eliminate the gasket
  • They will be made to accept a thermostat.
  • I am also working on a way to add a restrictor in place of the thermostat. I have a few ideas but this is a want and not a need so, we will see
  • They will be about 1Ē thick
  • They will be made for -8 or 10 fittings
  • All parts will be CNC machined from aluminum
  • I have a Pontiac CSR swivel water neck housing Iíll use for test fitting with the adapter. This would make the assembly gasketless as there would be O-rings on each piece

If there are additional features that anyone feels should be integrated let me know and Iíll consider them. I expect this to be a very limited run. I havenít decided on how many Iím going to produce yet. This is just a fun project.

Btw if you need pieces for a LS or the new LT4 these are currently available. Contact me for info. (see attached)
Attached Thumbnails
Click image for larger version

Name:	62D7125F-8808-47D0-9F5B-44BA216FF3FD.jpg
Views:	60
Size:	24.2 KB
ID:	595743   Click image for larger version

Name:	5AB9429D-84DD-4765-AA51-B20A46736BAC.jpg
Views:	59
Size:	36.7 KB
ID:	595744   Click image for larger version

Name:	F6FBF2DF-99CB-4BE3-A6FC-82252D69B430.jpg
Views:	73
Size:	43.2 KB
ID:	595745   Click image for larger version

Name:	525E4768-0182-4329-B9DC-B92C88034D2A.jpg
Views:	54
Size:	50.0 KB
ID:	595746

__________________
James
1970 Trans Am

Spotts Built 484" IA2, Highports, EFI Northwind
Terminator X sequential EFI fabrication and suspension by
https://www.funkhouserracecars.com/
  #67
Old 08-04-2022, 08:25 AM
Don 79 TA Don 79 TA is offline
Ultimate Warrior

Join Date: Sep 2007
Posts: 1,651
Default

Are you making a spacer that will allow #8 orb fittings?
will those fittings be under the T stat or above it?
just looking to see if i add additional rear cooling from heads to the front, i wanted to see if there is a solution like i saw with a SBC spacer where the t-stat sits on top of the spacer and the #8 ORB fittings are below
this way it helps to control temps from being to cold, at least that is my understanding
i might be interested


Quote:
Originally Posted by R 70 Judge View Post
After quite a few months of waiting and waiting Iíve decided to design and build my own CNC aluminum water manifold adapter/thermostat housing for a Pontiac. The final touches are being put on the design file now.
  • They will have rounded edges
  • Iím going to integrate an O-ring for sealing on one side to eliminate the gasket
  • They will be made to accept a thermostat.
  • I am also working on a way to add a restrictor in place of the thermostat. I have a few ideas but this is a want and not a need so, we will see
  • They will be about 1Ē thick
  • They will be made for -8 or 10 fittings
  • All parts will be CNC machined from aluminum
  • I have a Pontiac CSR swivel water neck housing Iíll use for test fitting with the adapter. This would make the assembly gasketless as there would be O-rings on each piece

If there are additional features that anyone feels should be integrated let me know and Iíll consider them. I expect this to be a very limited run. I havenít decided on how many Iím going to produce yet. This is just a fun project.

Btw if you need pieces for a LS or the new LT4 these are currently available. Contact me for info. (see attached)

  #68
Old 08-04-2022, 11:26 AM
R 70 Judge's Avatar
R 70 Judge R 70 Judge is offline
Ultimate Warrior

Join Date: Mar 2002
Location: San Diego, CA
Posts: 2,644
Default

Quote:
Originally Posted by Don 79 TA View Post
Are you making a spacer that will allow #8 orb fittings?
will those fittings be under the T stat or above it?
just looking to see if i add additional rear cooling from heads to the front, i wanted to see if there is a solution like i saw with a SBC spacer where the t-stat sits on top of the spacer and the #8 ORB fittings are below
this way it helps to control temps from being to cold, at least that is my understanding
i might be interested
Yes it will sit under the thermostat neck like you described. It will look similar to these Mezeire pieces but the fitting holes will be located appropriately for a Pontiac. I will only be supplying the spacer. Fittings will need to be purchased separately. I do like the idea of an O-ringed fitting.

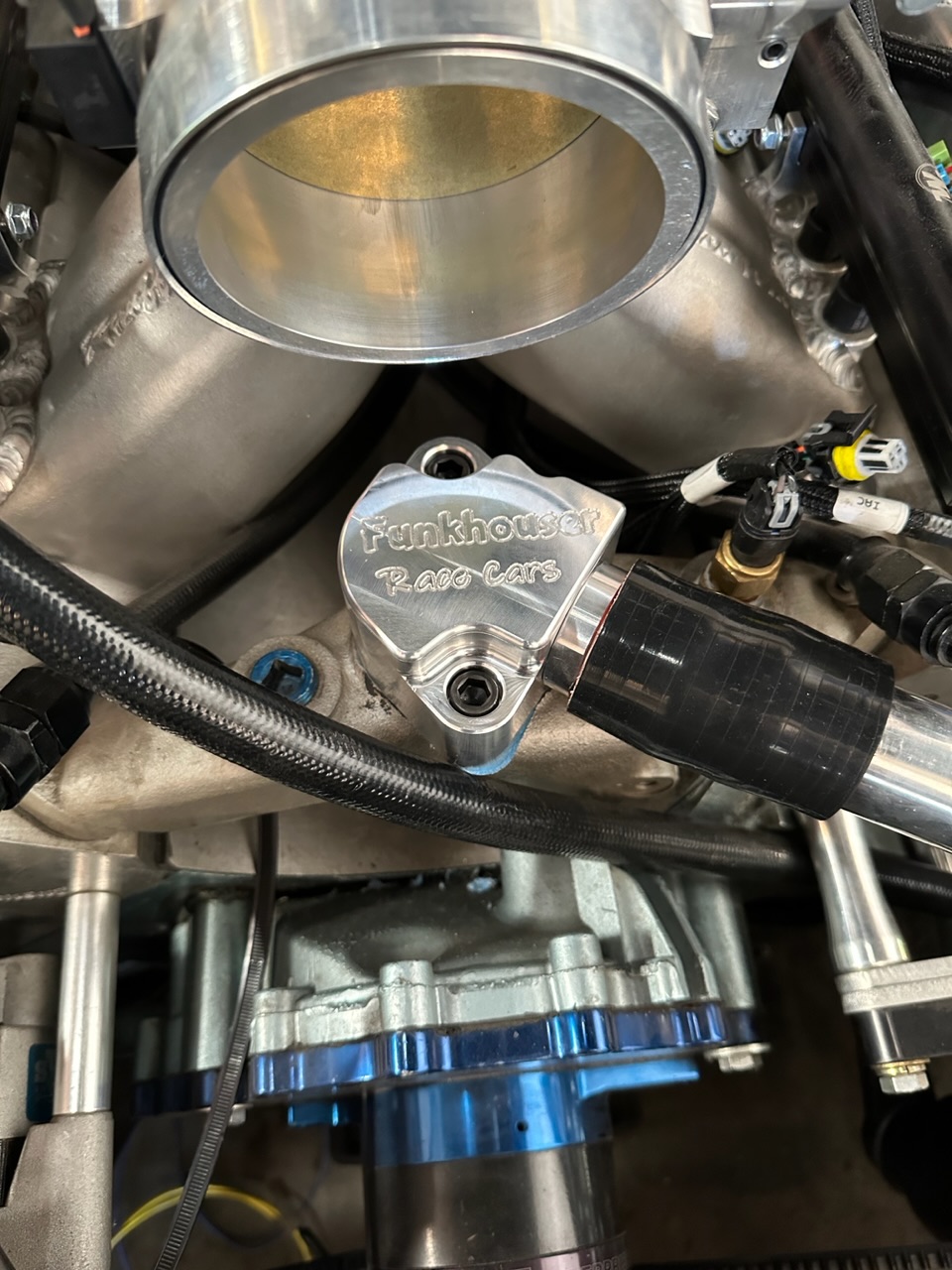

Attached Thumbnails
Click image for larger version

Name:	43AF193D-A951-4781-9318-8F46BA5F33E2.jpg
Views:	60
Size:	23.0 KB
ID:	595754   Click image for larger version

Name:	D8D56845-AC53-4FAD-9F22-30116DE0EAD0.jpeg
Views:	56
Size:	37.1 KB
ID:	595755

__________________
James
1970 Trans Am

Spotts Built 484" IA2, Highports, EFI Northwind
Terminator X sequential EFI fabrication and suspension by
https://www.funkhouserracecars.com/
The Following User Says Thank You to R 70 Judge For This Useful Post:
  #69
Old 08-04-2022, 12:17 PM
Steve C. Steve C. is offline
Ultimate Warrior

Join Date: Dec 1999
Location: Liberty Hill, Tx. (Austin)
Posts: 10,213
Default

R 70 Judge PM sent


.

__________________
'70 TA / 505 cid / same engine but revised ( previous best 10.63 at 127.05 )
Old information here:
http://www.hotrod.com/articles/0712p...tiac-trans-am/

Sponsor of the world's fastest Pontiac powered Ford Fairmont (engine)
5.14 at 140 mph (1/8 mile) , true 10.5 tire, stock type suspension
https://www.youtube.com/watch?v=qDoJnIP3HgE
The Following User Says Thank You to Steve C. For This Useful Post:
  #70
Old 08-04-2022, 12:22 PM
Scott65's Avatar
Scott65 Scott65 is offline
Ultimate Warrior

Join Date: Jan 2002
Location: Houston, Texas
Posts: 1,991
Default

Interested. Let us know the final details when you have them. Thanks for your efforts.

__________________
'65 Tempest 467 3650# 11.30@120.31
  #71
Old 08-04-2022, 03:54 PM
Bob with the 66's Avatar
Bob with the 66 Bob with the 66 is offline
Ultimate Warrior

Join Date: Jan 2003
Location: Motor city outsider, MI
Posts: 1,123
Default

http://www.precisionautomotivespecia...ine-Parts.html

FYI, These guy's are great.

__________________
"Artificial intelligence is no match for natural stupidity".

1966 GTO Post Coupe, 467ci. N/A Pump gas, best 1/4 11.6 118mph
1966 GTO Post Coupe, "The Bright Idea" 535ci. N/A Pump gas, best 1/4 9.58 141mph
  #72
Old 08-05-2022, 12:51 PM
chuckies76ta's Avatar
chuckies76ta chuckies76ta is offline
Ultimate Warrior

Join Date: Jun 2004
Location: Canada
Posts: 2,917
Default

Just an update on my thermostat and coolant setup. We ran the Car at Mission B.C. track this past weekend. Temperatures during the day were hitting 38*C or 100*F. It was very hot. The announcer was saying the track temp was around 140*F. Car ran great. The temperature on the engine never went past 180* The thermostat is at 160* After a run and back at the pit area the engine temp was 170-175*. We cooled it down with the fans and electric water pump. Works very well to cool engine down. Even with the thermostat and two holes drilled in Thermostat, the engine cooled to 140* very easily. Car ran a best of 10.11 at 133 mph. I still having traction issues which I'm going to address. Visited with Dave from S.D. Thanks to Dave for the tips on the Suspension.

__________________
Best 2021: 10.28 at 130mph.1.46 60ft.
Best 2022.:10.14 @ 133 mph 1.46 60 ft.
10.11@133 mph. 1.47 60 ft.
  #73
Old 08-05-2022, 03:38 PM
Dragncar Dragncar is offline
Ultimate Warrior

Join Date: Mar 2004
Location: Humbolt County California
Posts: 7,920
Default

Quote:
Originally Posted by Bob with the 66 View Post
Does anyone make a adapter like theirs but using a thermostat vs their coolant disks ?
My engine is hard blocked with .006 piston to wall and I want it to warm up as fast as possible.

  #74
Old 08-05-2022, 04:05 PM
R 70 Judge's Avatar
R 70 Judge R 70 Judge is offline
Ultimate Warrior

Join Date: Mar 2002
Location: San Diego, CA
Posts: 2,644
Default

Quote:
Originally Posted by Dragncar View Post
Does anyone make a adapter like theirs but using a thermostat vs their coolant disks ?
My engine is hard blocked with .006 piston to wall and I want it to warm up as fast as possible.
No, but if you give me a few weeks I should have some ready to go.

If you need something right away and don't care that both -8 coolant lines are on one side you could possibly redrill the Meziere piece to fit a Pontiac.

__________________
James
1970 Trans Am

Spotts Built 484" IA2, Highports, EFI Northwind
Terminator X sequential EFI fabrication and suspension by
https://www.funkhouserracecars.com/
The Following 2 Users Say Thank You to R 70 Judge For This Useful Post:
  #75
Old 08-06-2022, 02:29 AM
Dragncar Dragncar is offline
Ultimate Warrior

Join Date: Mar 2004
Location: Humbolt County California
Posts: 7,920
Default

Quote:
Originally Posted by R 70 Judge View Post
No, but if you give me a few weeks I should have some ready to go.

If you need something right away and don't care that both -8 coolant lines are on one side you could possibly redrill the Meziere piece to fit a Pontiac.
OK, make me one up.
How much $ ?

The Following 2 Users Say Thank You to Dragncar For This Useful Post:
  #76
Old 09-28-2022, 05:06 PM
Dragncar Dragncar is offline
Ultimate Warrior

Join Date: Mar 2004
Location: Humbolt County California
Posts: 7,920
Default

Quote:
Originally Posted by R 70 Judge View Post
No, but if you give me a few weeks I should have some ready to go.

If you need something right away and don't care that both -8 coolant lines are on one side you could possibly redrill the Meziere piece to fit a Pontiac.
Did you ever make any thermostat versions ? I tried to order the ones with the disc but they are 6 weeks out.

  #77
Old 09-28-2022, 07:59 PM
R 70 Judge's Avatar
R 70 Judge R 70 Judge is offline
Ultimate Warrior

Join Date: Mar 2002
Location: San Diego, CA
Posts: 2,644
Default

Quote:
Originally Posted by Dragncar View Post
Did you ever make any thermostat versions ? I tried to order the ones with the disc but they are 6 weeks out.
Working on it. I have the CNC files to do it. What I don't have is a ton of free time as of late. Possibly in the next 2-3 weeks but no promises

If you are desperate for one ASAP I suggest buying one from Meziere and redrilling it for a Pontiac.

https://www.meziere.com/Products/Coo...t-Spacers.aspx

__________________
James
1970 Trans Am

Spotts Built 484" IA2, Highports, EFI Northwind
Terminator X sequential EFI fabrication and suspension by
https://www.funkhouserracecars.com/
  #78
Old 09-28-2022, 08:14 PM
Mr Anonymous's Avatar
Mr Anonymous Mr Anonymous is offline
Senior Chief

Join Date: Dec 2004
Location: Waynesville, OH
Posts: 385
Default

On a race only application: electric pump, electric fan, coolant restrictor with 1" hole. A 3/8 aluminum line from the rear of each head to the thermostat housing above the restrictor. Works like a champ. When I do the E-85 changeover in the spring, expecting to drop radiator size a goodly bit.

__________________
Clutch Guys Matter
_______________________________________
53 Studebaker, 400P/th400/9"
64 F-85
72 4-4-2 Mondello's VO Twister II
84 Hurst/Olds #2449
87 Cutlass Salon
54 Olds 88 sedan
  #79
Old 06-29-2023, 02:18 AM
R 70 Judge's Avatar
R 70 Judge R 70 Judge is offline
Ultimate Warrior

Join Date: Mar 2002
Location: San Diego, CA
Posts: 2,644
Default

Okay I have an update. Funkhouserís ended up fabricating a low profile water neck for my build. As some of you know Iím in the process of switching to efi and eventually turbos so I wanted a forward facing throttle body. He tried a CSR 360* swivel water neck but it hit my intake pipe/clamp so he whipped this up in Solidworks. This design is very different than a traditional water neck.

Features:
  • 100% billet
  • Threaded water exit for use with -20 AN ORB fitting
  • Threaded for -8 AN or -10 AN inlets to pull water from the rear of the heads (I havenít decided which size yetÖprobably-8)
  • Water pulled from back of the heads enters the housing above the thermostat so water is constantly moving in the cooling system
  • Very low profile to clear fuel injection and nitrous components
  • Uses standard style thermostat
  • O-ring base to intake manifold (no gasket required)
  • Countersunk hardware for clean appearance
If anyone is interested in buying one I can probably have a few made. I donít know pricing yet.

Also, if anyone is interested in remote power steering brackets (clears driverís side turbo manifold) or Holley smart coil brackets please let me know ASAP.

Attached Thumbnails
Click image for larger version

Name:	IMG_0899.jpg
Views:	54
Size:	111.5 KB
ID:	615049   Click image for larger version

Name:	IMG_0897.jpg
Views:	51
Size:	74.0 KB
ID:	615050   Click image for larger version

Name:	IMG_0901.jpg
Views:	52
Size:	116.8 KB
ID:	615051   Click image for larger version

Name:	IMG_0930.jpg
Views:	59
Size:	105.4 KB
ID:	615052   Click image for larger version

Name:	IMG_0900.jpg
Views:	50
Size:	91.1 KB
ID:	615053


__________________
James
1970 Trans Am

Spotts Built 484" IA2, Highports, EFI Northwind
Terminator X sequential EFI fabrication and suspension by
https://www.funkhouserracecars.com/
  #80
Old 06-29-2023, 02:36 AM
Dragncar Dragncar is offline
Ultimate Warrior

Join Date: Mar 2004
Location: Humbolt County California
Posts: 7,920
Default

What a sweet engine.

Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -4. The time now is 04:56 PM.



About Us

The PY Online Forums is the largest online gathering of Pontiac enthusiasts anywhere in the world. Founded in 1991, it was also the first online forum for people to gather and talk about their Pontiacs. Since then, it has become the mecca of Pontiac technical data and knowledge that no other place can surpass.






Copyright © 2017
